#Wargame Wednesday – Did Poseidon feed Moskva to Neptune, or was it Mineral-U spirits? What does Harpoon 5 (admiraltytrilogy.com) wargame say?

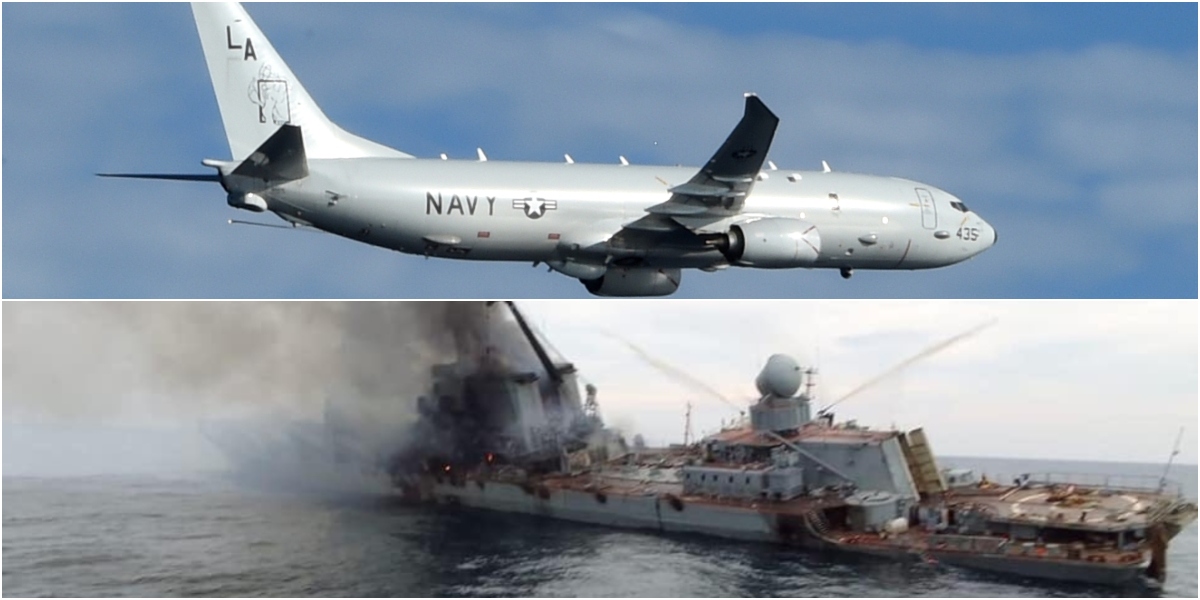

There are reports floating around the internet making the interesting claim that a U.S. Navy P-8 Poseidon maritime patrol aircraft was operating in the area the night the RFN Moskva was sunk. The implication is that the U.S. Navy P-8 fed targeting data to the Ukrainian Navy Neptune coastal defense anti-ship missile battery and therefore contributed to the sinking of the cruiser.

On April 13th, a P-8 Poseidon with a hex code of AE681B was spotted leaving the U.S. Airbase at Sigonella in Sicily, Italy, and was then detected over the Mediterranean at 1:32 pm local Kyiv time.

FlightRadar24 data then showed the P-8 flying over the Balkans and Bulgaria, after which it flew over the Romanian coast in the Black Sea in the afternoon. The last known position of the aircraft was Valea Nucarilor, Romania which is about 12 miles from the Ukrainian border, at 3:27 pm, about 100 miles from the location where the Moskva was found after allegedly being hit.

It had begun descending from an altitude of around 29,000 feet down to 11,900 feet just before dropping off FlightRadar24 tracking and disappearing.

It disappeared for about 2 hours and 56 minutes before appearing again at 6:23 pm, where it was seen flying towards the Black Sea coast above Casimcea in Romania, around 37 miles from the position it had been before it disappeared.

It is standard procedure for an aircraft to turn off its transponder or the device that broadcasts its location before entering any kind of conflict zone.

Around 19 minutes later the aircraft disappeared from the radar once again and then reappeared after 42 minutes near Abrud, in Romania at 7:24 pm. After that, it traveled back to Sigonella.

The Moskva was first reported to have been hit at 8:42 pm after a Facebook post that came from a Ukrainian who had links to the military, and then at 10:31 pm, the Ukrainian governor of Odesa confirmed that a strike had been carried out on the vessel.

oslint.org, April 21,2022

Using the wargame Harpoon 5 (Admiralty Trilogy Group, 2021) lets see what we can learn. For this exploration we will need to dig deep into two particular rules sections; 5.0 Detection and 6.0 Fire Control.

In Harpoon 5, detection takes place in the Detection Phase of the Tactical Turn Sequence (2.3.3). Assuming the P-8 was using it’s surface search radar in the active mode after descending to 11,900 ft (3,627 m or Medium Altitude), taking the Radar Line of Sight table (part of rule 5.2.8 Radar Line of Sight) we cross-reference a P-8 flying at Medium Altitude and a Medium-size surface target to get a detection range of 170 nm; Moskva was very likely detected by the P-8 (and Moskva very likely also detected the P-8 in return).

The implication in the story is that the P-8 passed targeting data. In Harpoon 5, data is passed during the Detection Phase when players, “exchange visual, radar, sonar, Electronic Support (ES), data links, and other sensor information.” Once Moskva was detected, the P-8 would have to pass a fire control solution (see 6.3 Fire Control Solutions) to the Neptune battery to enable an attack. Per rule 6.3.1 Fire Control Solution Quality, there are four levels of quality; Good, Fair, Poor, and No Attack. Building a fire control solution is a combination of time (longer time in contact the better), contact speed, the generation (age) of the Combat System (aircraft are always a modifier of 0), and the generation of the weapon being used in the strike. Equally important is the Tactical Data Link being used to “pass” the solution. Given the amount of time the P-8 allegedly spent near Moskva—hours—the quality of the fire control solution would very likely be the best possible—Good.

In Harpoon 5, like in real life, how does the P-8 get that Good fire control solution to the Neptune battery? Did it use a Real Time or Near Real Time tactical data link? Although there are plenty of reports the U.S. is sharing intelligence with Ukraine*, there is no clear evidence that tactical data links are being used. A more plausible scenario is that U.S. and NATO intelligence is being collated and passed to Kyiv. At best, and assuming the P-8 was directly in contact with Ukrainian forces (a big assumption), we have to go to rule 6.3.10 Sharing Contact Information Without TDLs which states:

Contact data can be manually shared by radio (voice or teletype) or even cell phones, however, the process is slow, with a higher risk of errors, and has little tactical use other than reporting the presence of a contact in the area.

6.3.10

Even if the fire control solution was passed in real (or near) time to the Ukrainians, it was good at ~6:23 pm when the P-8 reappeared in the flight tracking application. This was maybe as long as two hours before Moskva was struck. There is no way in Harpoon 5 to keep a “good” fire control solution when not in contact. After two hours, the fire control solution from the P-8 by-the-rules was of No Attack quality.

If the Ukrainian Neptune battery commander in Harpoon 5 had only the general information (“No Attack” quality fire control solution) provided by the P-8, the commander is forced to use a Bearing Only Launch (BOL) following rule 6.3.6 of the same name. BOL attacks in turn are executed using rule 8.4.2 Bearing Only Launch (BOL) Attacks. The commander must pick a launch azimuth and a range for the seeker head to activate and start looking. The fire control solution quality is automatically Poor (interestingly, an improvement over the No Attack starting condition). As in any surface missile attack, when the seeker head opens the player must make a Placement Roll (6.3.8 Rolling for Weapon Placement) to see if the seeker finds its intended target. The chances of an anti-ship cruise missile using a BOL and finding its intended target when the seeker activates is 30%.

How could the Neptune battery commander improve his odds using the rules in Harpoon 5? It’s quite possible he used his organic sensors. The Neptune ASCM is part of a weapons complex that includes the missile, the launcher, command and control, and sensors. The sensor intended for the Neptune system is called Mineral-U. The Mineral-U is an interesting system, known in Harpoon 5 as a Targeting Radar (SS-T):

Targeting radars (SS-T) are a type of surface-search radar used by the Soviet Union/Russia. They not only function as a surface search radar optimized to use the surface duct to extend their range over the horizon, but can serve as extremely precise ES [Electronic Support] sensors….They can use the radar duct to extend their range.

5.2.4 Shipboard Radar Types

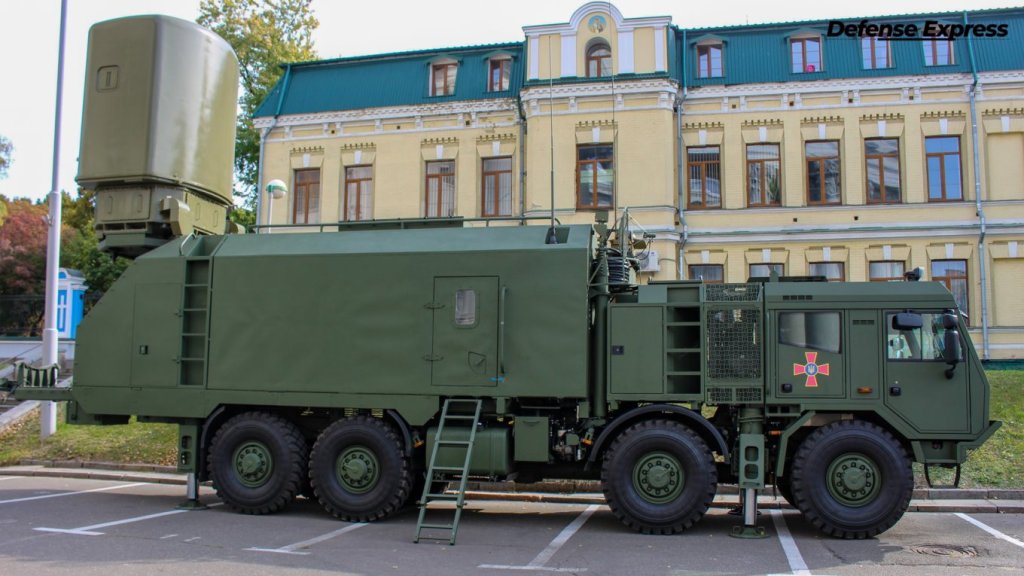

Mineral-U radar vehicle seen displayed at the open-air exhibition ”A Digital Future for the Army” held in Kyiv in October 2021 (Courtesy en.defense-ua.com)

Although one could argue about the lack of Russian air superiority, the Neptune battery commander might not want to “go active” and try to get an Active RF [Radio Frequency] fire control solution. To radiate the Mineral-U radar is to invite an attack. Alternatively, it is possible to work towards a Passive RF fire control solution using rule 6.3.2 Radio-Frequency (RF) Fire Control Solution. To achieve a Good solution for the Neptune means tracking Moskva for at least 15 minutes (5 Tactical Turns); a risk but one well worth it? With a Good quality fire control solution the Placement Roll is 90%—a vast improvement over the 30% chance with a BOL Poor quality solution.

This little exploration using Harpoon 5 shows us that, while it is technically possible the P-8 “tracked” Moskva, even if that data was somehow passed to the Ukrainians it was more likely used for (at best) general situational awareness and not for targeting. To achieve the greatest chance for success, the Ukrainian Neptune battery commander more likely used organic sensors to Find, Fix, Track, and Target Moskva to enable the Neptune missiles to Engage. Harpoon 5 gives us a tool to Assess strike success.


* UPDATE: On Tuesday, April 26, NBC News published a story that talked about the degree of intelligence sharing between the United States and Ukraine:

Ukrainian forces have used specific coordinates shared by the U.S. to direct fire on Russian positions and aircraft, current and former officials tell NBC News.

As Russia launched its invasion, the U.S. gave Ukrainian forces detailed intelligence about exactly when and where Russian missiles and bombs were intended to strike, prompting Ukraine to move air defenses and aircraft out of harm’s way, current and former U.S. officials told NBC News.

That near real-time intelligence-sharing also paved the way for Ukraine to shoot down a Russian transport plane carrying hundreds of troops in the early days of the war, the officials say, helping repel a Russian assault on a key airport near Kyiv.

“There has been a lot of real-time intelligence shared in terms of things that could be used for specific targeting of Russian forces,” said a former senior intelligence official familiar with the situation. The information includes commercial satellite images “but also a lot of other intelligence about, for example, where certain types of Russian units are active.”

Ukrainian forces have used specific coordinates shared by the U.S. to direct fire on Russian positions and aircraft, current and former officials tell NBC News.

While the phrase “real-time intelligence” is liberally sprinkled throughout the article, and some of the reporting implies extremely timely exchange of intelligence, the association of the P-8 and the Moskva sinking is not discussed. The fact remains that even if the P-8 passed target-quality intelligence “in real-time,” the data was “aged” by at least two hours before any Neptune strike. The Harpoon 5 -derived situation still stands as a very plausible explanation of the likely events at the time of the sinking.
